Scope of application
CJX2 series of new type AC contactor (hereinafter referred to as the new contactor), is mainly used in the circuit of AC 50Hz (or 60Hz), voltage up to 690V, and the rated working current up to 620A under the AC-3, 400 (380) V applicable categories, for remote switch on and off the circuit, frequent starting and control of AC motors, and can compose an electromagnetic starter with the appropriate thermal relay to protect the circuit that may have operation overload.
Ordering instructions

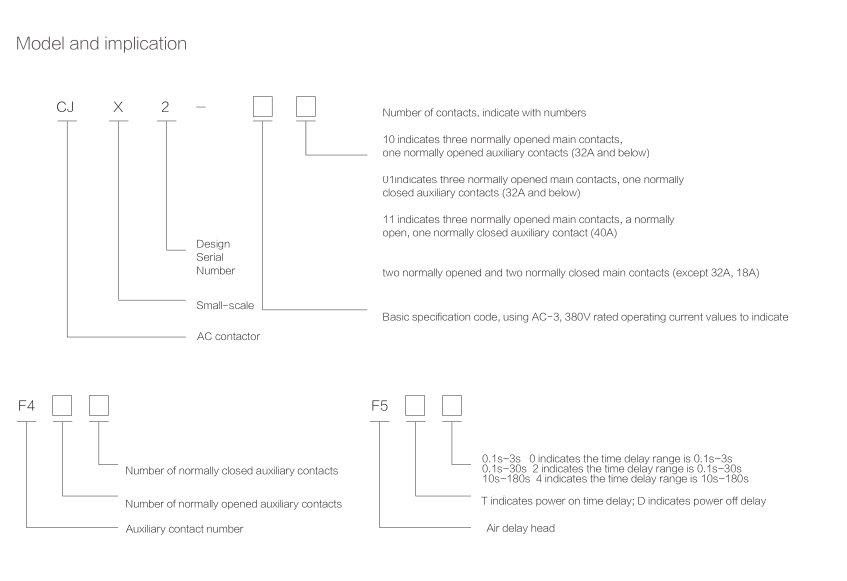

The following must be pointed out when an order is placed: Product model name, coil operating voltage and frequency, contact quantity, quantity;
For example: CJX2-4011 380V 50Hz 50 units;
