Scope of application

AM1 series plastic shell type circuit breaker (hereinafter referred to as circuit breaker). Its rated insulation voltage is 800V, and it is applicable to the circuit of AC 50Hz/60Hz, rated operating voltage 690V and below, (AM1-63 is 400V), rated operating current up to 800A as non frequent switch and motor protection (AM1-800 without motor protection type). Circuit breaker has overload, short circuit and under voltage protection function, and can protect the circuit and power equipment from any damage.

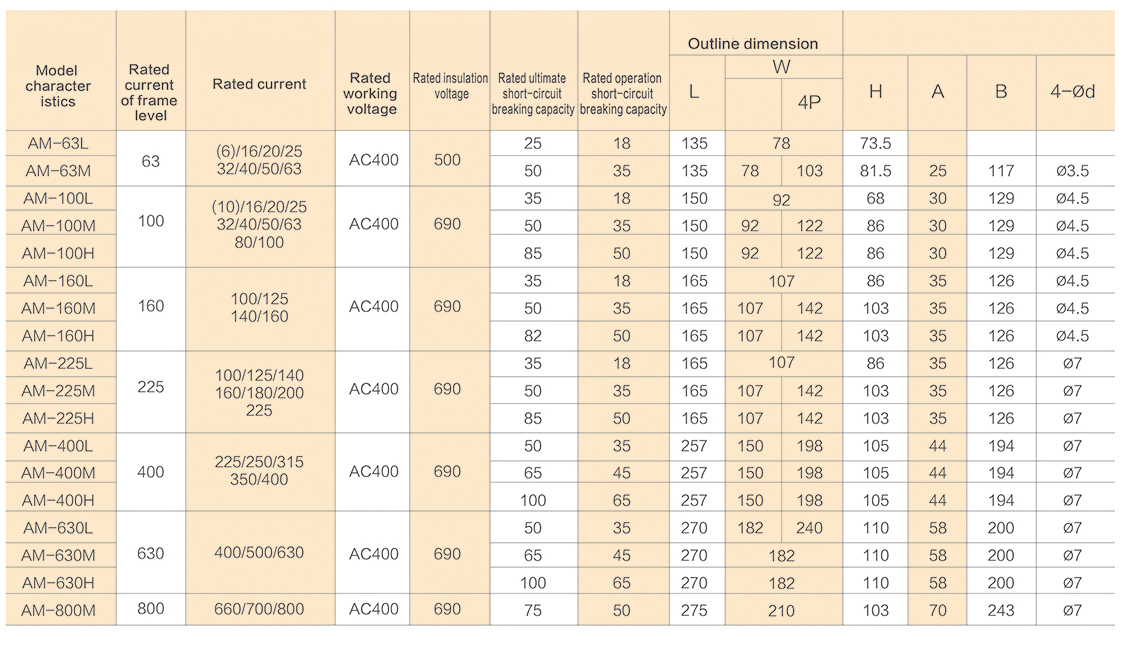

According to its rated capacity of short-circuit breaking capacity, the circuit breaker can be divided into four categories of type C (basic type), type L (standard type), type M (relatively high breaking type), type H (high breaking type). The circuit breaker has the characteristics of small size, high breaking, short flying arc (part of the specifications has zero arcing), anti vibration and so on.

Executive standard: IEC60947l and GB14048.12006

IEC609472 and GB14048.22008 circuit breaker

IEC6094741 and GB14048.4 electromechanical contactors and motor starters

IEC609475l and GB14048.5 electromechanical control circuit devices

Ordering instructions

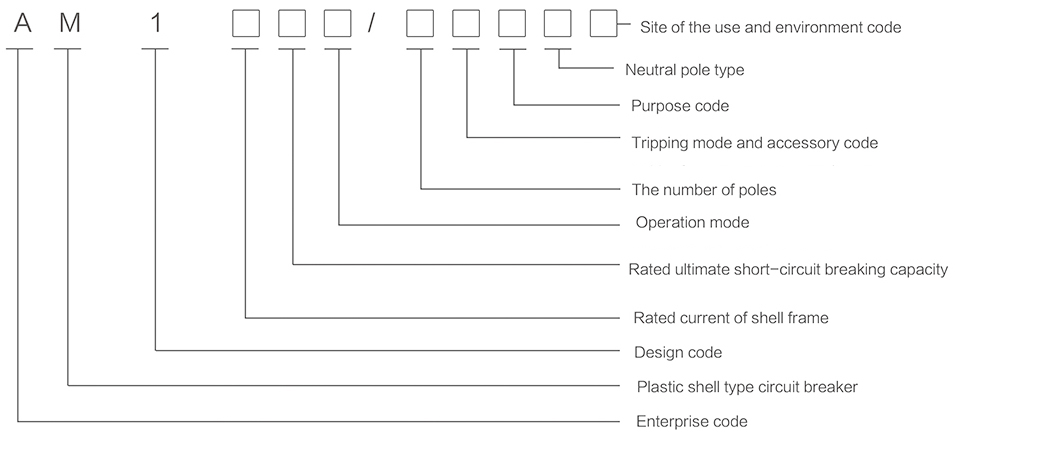

The following must be pointed out when an order is placed: Product model name, operating voltage and quantity

For example: AM1 63A  50 units
