Scope of application

DZ47-66 high breaking miniature circuit breaker (air switch) is suitable to protect the circuit from overload and short circuit, suitable for power distribution system of lighting and the power distribution system of motor; its shape and appearance is beautiful, weight is light, performance is excellent and reliable, and the breaking capacity is great; it is tripping rapidly and rail-mounted; its shell and the parts adopt high flame retardant and impact resistant plastic; it has long service life, and is mainly used for overload and short circuit protection of circuit of AC 50Hz, rated voltage up to 400V, rated current up to 63A. At the same time, it can in normal circumstances do not frequently turn on-off the electrical devices or the lighting circuit.

This product conforms to the GB10963.1 standard.

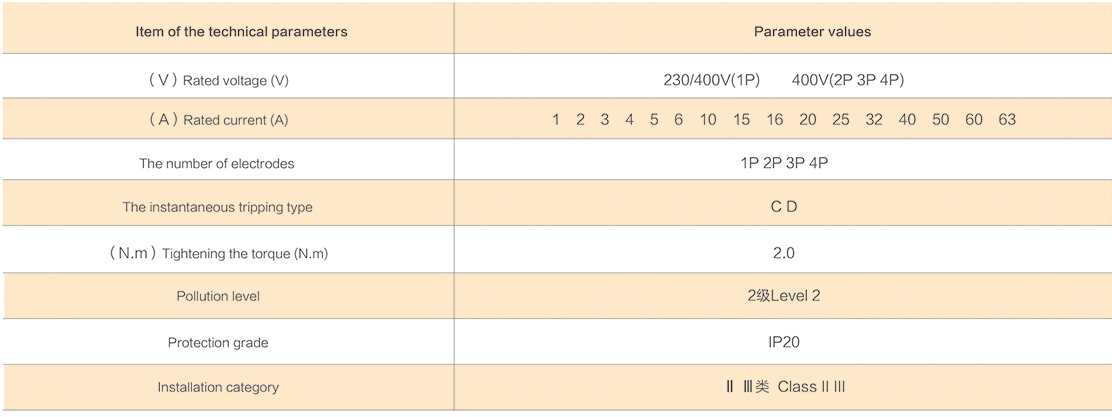

Main technical parameters

Ordering instructions

The following must be pointed out when an order is placed: Product model name and rated current, electrode number, quantity;

For example: DZ47  63A  2P  50 units;
