Scope of application

Residual current operated circuit breaker DZ47LE series residual current operated circuit breaker is applied to the circuit of AC 50Hz or 60Hz, rated voltage of single electrode two lines, two electrodes 230V, three electrodes four lines, four electrodes 400V, rated current up to 60A; when the human body has electric shock, or the electric leakage current exceeds the set value, residual current operated circuit breaker will quickly cut off the faulted power within a very short period of time failure to protect the personal safety and the safety of electrical equipments. The residual current operated circuit breaker has overload and short circuit protection function, which can be used to protect the overload and short circuit of the circuit or the motor, and can be used as a non frequent switching starting of the circuit under normal conditions.

Meet the standards: GB  16917.1, IEC  61009-1.

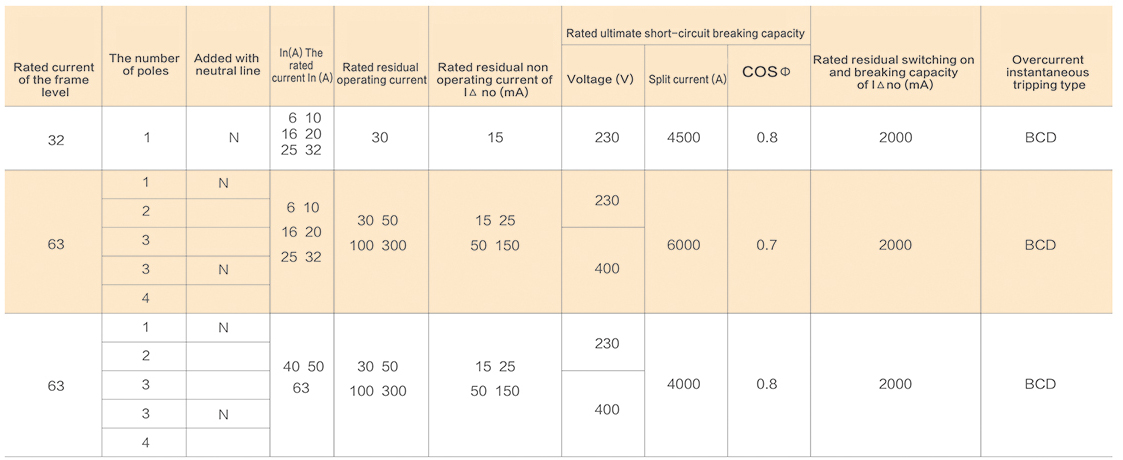

Main technical parameters

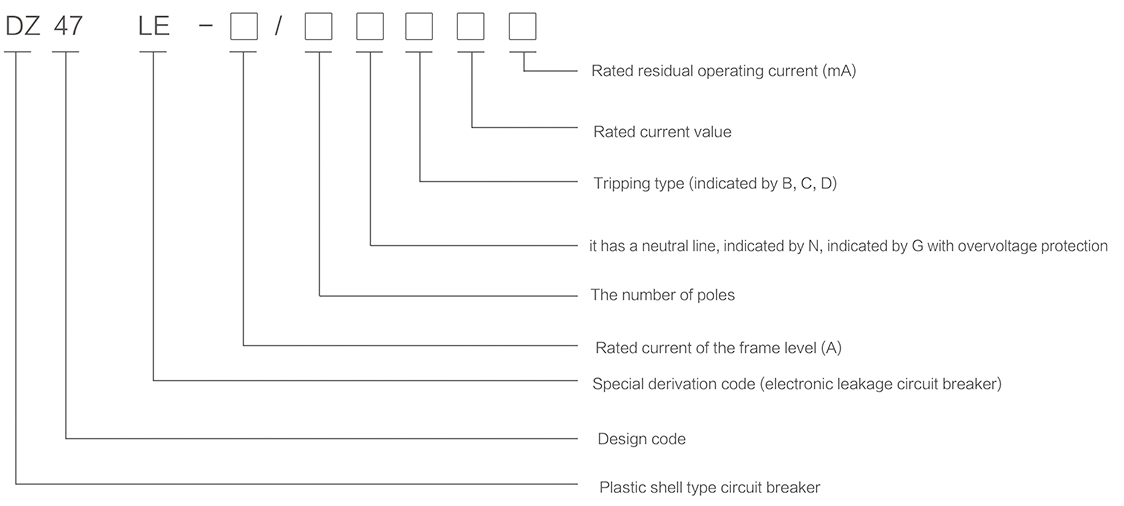

Ordering instructions

The following must be pointed out when an order is placed: Product model name and rated current, electrode number, quantity;

For example: DZ47LE  63A  2P  50 units;
