Scope of application
Qcx2 series magnetic starter (hereinafter referred to as the starter) is applicable to the starting and stopping of the three-phase squirrel cage motor of AC 50Hz (or 60Hz) rated insulation voltage of 660V, or the rated current up to 95A when the rated operating voltage is 380V under the category AC-3, and protect the balanced overload and broken phase of the electric machine. Meet the GB14048.4 standards.

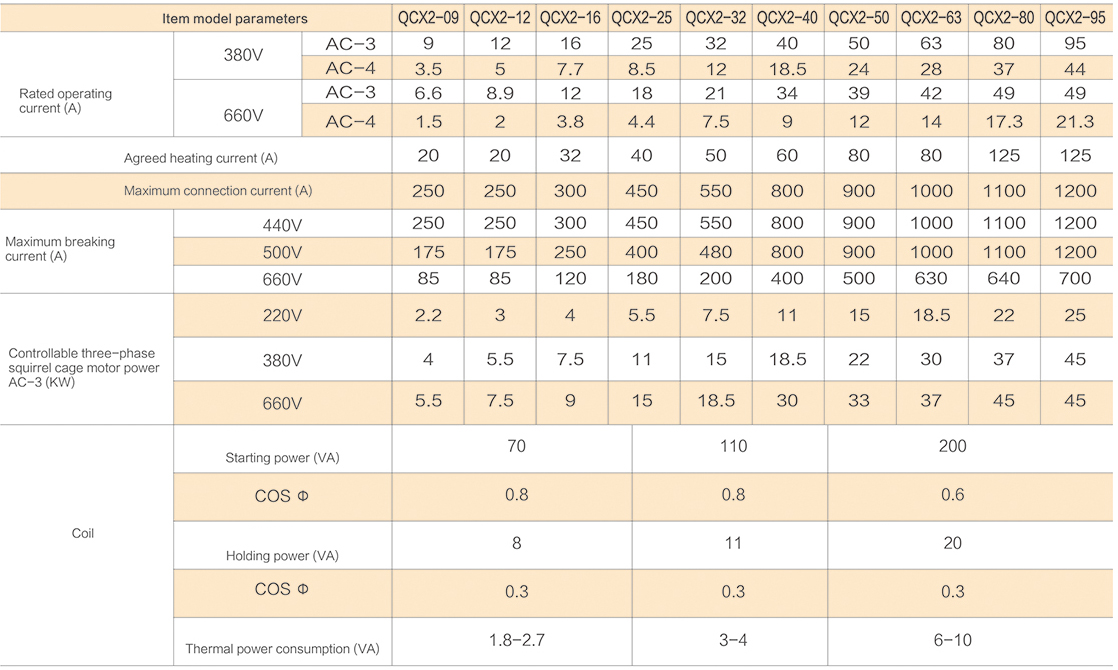

Main technical parameters
Ordering instructions
The following must be pointed out when an order is placed: Product model name, operating voltage and quantity
For example: QCX2-25 380V 50 units
