AMH3 Household AC contactorLocation: home page > AMH3 Household AC contactor
AMH3 Household AC contactor
AMH3 Household AC contactor
Product details

Scope of application

The contactor is mainly used in the power system of AC 50Hz/60Hz, rated voltage up to 400V, rated working current up to 100A, under the AC-1, AC-7a using categories, for long distance switch and control circuit.

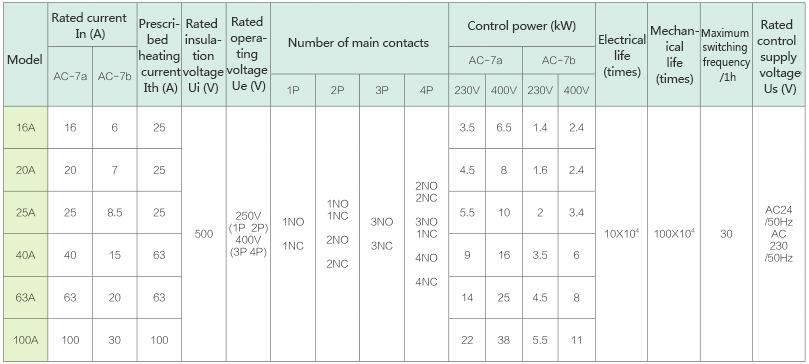

Main technical parameters


Ordering instructions

The following must be pointed out when an order is placed: product model name, contact number and quantity

For example: household AC contactor  16A   1P  50 units
